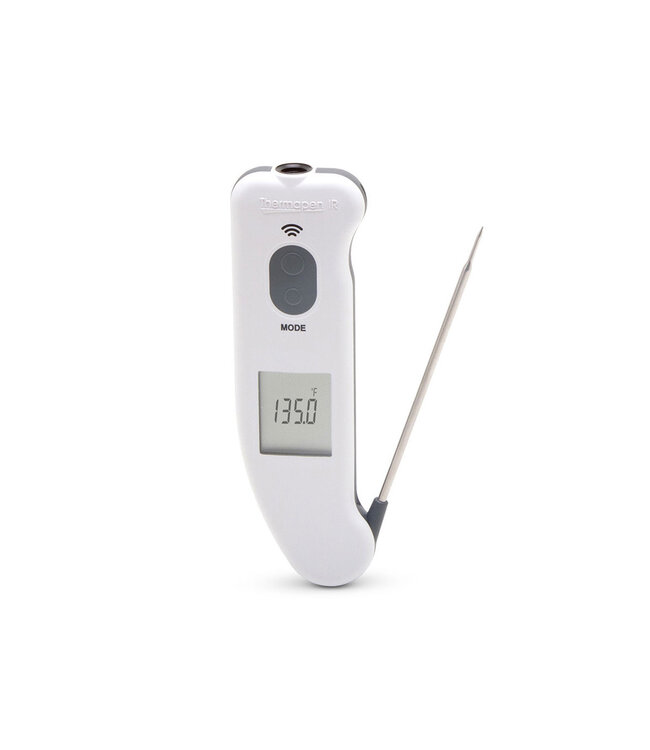

Two professional instruments in one!
Thermapen IR combines the unparalleled speed and accuracy of a Thermapen with the versatility of an instrument-grade infrared sensor for instant non-contact surface readings. Why carry two different thermometers when you can just carry the Thermapen IR?
View both infrared and penetration probe readings from either hand in any position with Thermapen IR's patented 360° auto-rotating display. In Probe mode, set the unit down, and Sleep Mode saves battery life. Pick it up, and it turns on automatically. Close the probe when you're done and it powers off for storage. Each unit ships with a NIST-traceable calibration certificate for both the probe and infrared so you know it's accurate.
Thermapen IR is a must-have, versatile tool for restaurants, health inspectors, manufacturing, laboratory, and more.
Specs
| Infrared | |
| Infrared Range | -58.0 to 661.8°F (-49.9 to 349.9°C) |
| Infrared Accuracy | ±1.8°F (±1.0°C) from 32 to 212°F (0 to 100°C) otherwise ±3.62°F (±2.0°C) or 2% of reading, whichever is greater |
| Infrared Response Time | 1 second |
| Distance to Target | 5:1 target ratio (5" distance measures a 1" diameter target area) |
| Emissivity | 0.95 default - adjustable from 0.1 to 1 |
| Spectral Range | 5 to 16 µm |
| Auto-Off |
30 seconds
|
| Probe | |
| Probe Range | -58.0 to 572.0°F (-49.9 to 299.9°C) |
| Probe Accuracy | ±0.7°F (±0.4°C) from -58 to 392°F (-49.9 to 199.9°C) otherwise ±1.8°F (±1.0°C) |
| Probe Response Time | 2-3 seconds (reads to within 1°F of final temperature of an ice bath in 3 seconds) |
| Probe | 0.13 dia. x 4.3 L inches (3.3 x 110 L mm) reduces to 0.06 dia. x 0.60 L inches (1.5 dia. x 1.75 L mm), High Performance Type K Thermocouple |
| General | |
| Resolution | Factory set to 1° (user reconfigurable to 0.1°) |
| Response Time | Full reading in 2-3 seconds (0.4 seconds per time constant)* |
| Units | °C/°F switchable (user reconfigurable) |
| Water Resistance** | IP54 |
| Battery | 2x 3V CR2032 Lithium coin cell, 1,000 hours typical |
| Sleep Mode | 30 seconds after last movement detected in probe mode or after measurement button is released in IR mode |
| Operating Range | -4 to 122°F (-20 to 50°C), max ambient limits of Thermapen body |
| Display | 1 H x 1.54 W inches (25 H x 39 W mm) LCD, rotates 360° |
| Dimensions | 6.18 H x 1.97 W x 0.75 D inches (157 H x 50 W x 19 D mm) |
| Weight | 0.26 lbs (120g) |
| Certificate | Includes NIST-Traceable calibration certificate |
